pw::clock_tree::Element Class Reference

Overview

Abstract base class for a clock tree element of a clock tree.

Class implementations of Element must implement DoAcquireLocked and DoReleaseLocked functions. For clock tree elements that only get enabled / configured, it is sufficient to only override the DoEnable function, otherwise it is required to override the DoDisable function to disable the respective clock tree element.

Note: Clock tree element classes shouldn't be directly derived from the Element class, but from the ElementBlocking, ElementNonBlockingCannotFail or ElementNonBlockingMightFail class.

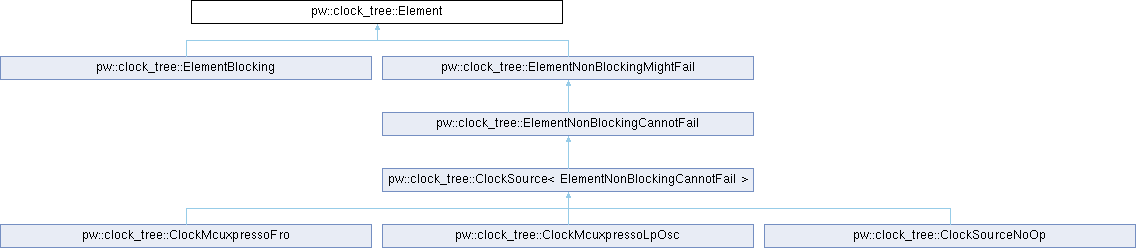

Inheritance diagram for pw::clock_tree::Element:

Public Member Functions
constexpr	Element (bool may_block)
uint32_t	ref_count () const
	Get reference count for this clock tree element.
bool	may_block () const
	Check whether acquiring or releasing the element may block.
	Element (const Element &)=delete
	Element (const Element &&)=delete
Element &	operator= (const Element &)=delete
Element &	operator= (const Element &&)=delete
Status	Acquire ()
Status	Release ()
Status	AcquireWith (Element &element_with)

Protected Member Functions
virtual Status	DoAcquireLocked ()=0
virtual Status	DoReleaseLocked ()=0
uint32_t	IncRef ()
	Increment reference count and return incremented value.
uint32_t	DecRef ()
	Decrement reference count and return decremented value.
virtual Status	DoEnable ()=0
	Function called when the clock tree element needs to get enabled.
virtual Status	DoDisable ()

Private Member Functions
virtual Status	DoAcquire ()=0
	Handle Acquire(), deferring locking the child class.
virtual Status	DoRelease ()=0
	Handle Release(), deferring locking the child class.

---

The documentation for this class was generated from the following file:

• pw_clock_tree/public/pw_clock_tree/clock_tree.h
