pw::digital_io::DigitalInOut Class Reference
pw_digital_io

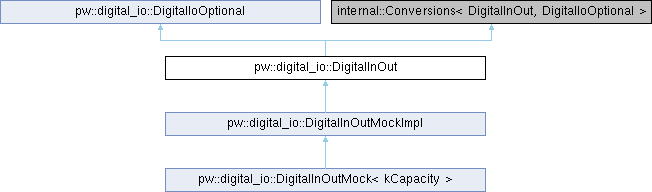

Inheritance diagram for pw::digital_io::DigitalInOut:
pw::digital_io::DigitalIoOptional pw::digital_io::DigitalInOutMockImpl pw::digital_io::DigitalInOutMock< kCapacity >

Public Member Functions

Result< State > GetState ()

Result< bool > IsStateActive ()

Status SetState (State state)

Status SetStateActive ()

Status SetStateInactive ()

- Public Member Functions inherited from pw::digital_io::DigitalIoOptional
constexpr bool provides_input () const

constexpr bool provides_output () const

constexpr bool provides_interrupt () const

Result< State > GetState ()

Status SetState (State state)

Result< bool > IsStateActive ()

Status SetStateActive ()

Status SetStateInactive ()

Status SetInterruptHandler (InterruptTrigger trigger, InterruptHandler &&handler)

Status ClearInterruptHandler ()

Status EnableInterruptHandler ()

Status DisableInterruptHandler ()

Status Enable ()

Status Disable ()


Private Member Functions

Status DoSetInterruptHandler (InterruptTrigger, InterruptHandler &&) final

Status DoEnableInterruptHandler (bool) final


Member Function Documentation

◆ GetState()

Result< State > pw::digital_io::DigitalIoOptional::GetState ( )
inline

Gets the state of the line.

Warning
This method is not thread-safe and cannot be used in interrupt handlers.
Returns
A Result containing the state on success or one of the following error codes on failure:
  • FAILED_PRECONDITION: The line has not been enabled.
  • Returns Other status codes as defined by the backend.

◆ IsStateActive()

Result< bool > pw::digital_io::DigitalIoOptional::IsStateActive ( )
inline

Checks if the line is in the active state.

The line is in the active state when GetState() returns State::kActive.

Warning
This method is not thread-safe and cannot be used in interrupt handlers.
Returns
A Result containing a boolean set to true if the line is active on success or one of the following error codes on failure:
  • FAILED_PRECONDITION: The line has not been enabled.
  • Returns other status codes as defined by the backend.

◆ SetState()

Status pw::digital_io::DigitalIoOptional::SetState ( State  state)
inline

Sets the state of the line.

Callers are responsible to wait for the voltage level to settle after this call returns.

Warning
This method is not thread-safe and cannot be used in interrupt handlers.
Returns
  • OK: The state has been set.
  • FAILED_PRECONDITION: The line has not been enabled.
  • Returns other status codes as defined by the backend.

◆ SetStateActive()

Status pw::digital_io::DigitalIoOptional::SetStateActive ( )
inline

Sets the line to the active state. Equivalent to SetState(State::kActive).

Callers are responsible to wait for the voltage level to settle after this call returns.

Warning
This method is not thread-safe and cannot be used in interrupt handlers.
Returns
  • OK: The state has been set.
  • FAILED_PRECONDITION: The line has not been enabled.
  • Returns other status codes as defined by the backend.

◆ SetStateInactive()

Status pw::digital_io::DigitalIoOptional::SetStateInactive ( )
inline

Sets the line to the inactive state. Equivalent to SetState(State::kInactive).

Callers are responsible to wait for the voltage level to settle after this call returns.

Warning
This method is not thread-safe and cannot be used in interrupt handlers.
Returns
  • OK: The state has been set.
  • FAILED_PRECONDITION: The line has not been enabled.
  • Returns other status codes as defined by the backend.
The documentation for this class was generated from the following file:
