Overview

template<typename ElementType>
class pw::clock_tree::ClockMcuxpressoDivider< ElementType >

Class template implementing the clock divider element.

Template argument ElementType can be of class ElementBlocking or ElementNonBlockingCannotFail.

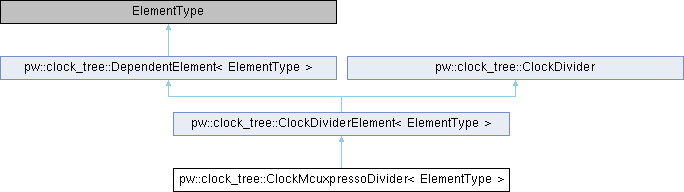

Inheritance diagram for pw::clock_tree::ClockMcuxpressoDivider< ElementType >:

Public Member Functions
template<typename SourceType >
constexpr	ClockMcuxpressoDivider (SourceType &source, clock_div_name_t divider_name, uint32_t divider)

Public Member Functions inherited from pw::clock_tree::ClockDividerElement< ElementType >
template<typename SourceType >
constexpr	ClockDividerElement (SourceType &source, uint32_t divider)

template<typename T = ElementType>
std::enable_if_t< T::kMayFail, pw::Status >	SetDivider (uint32_t divider)

template<typename T = ElementType>
std::enable_if_t<!T::kMayFail, void >	SetDivider (uint32_t divider)

Public Member Functions inherited from pw::clock_tree::DependentElement< ElementType >
template<typename SourceType >
constexpr	DependentElement (SourceType &source)
	Create a dependent clock tree element that depends on `source`.

Public Member Functions inherited from pw::clock_tree::ClockDivider
constexpr	ClockDivider (Element &element)

Status	SetDivider (uint32_t divider)

Element &	element () const
	Return the element implementing this interface.

Private Member Functions
Status	DoEnable () final
	Set the divider configuration.

Additional Inherited Members
Protected Member Functions inherited from pw::clock_tree::ClockDividerElement< ElementType >
uint32_t	divider () const
	Get current divider value.

Protected Member Functions inherited from pw::clock_tree::DependentElement< ElementType >
template<typename SourceType >
void	SetSource (SourceType &source)

Element &	source ()

The documentation for this class was generated from the following file:
