Overview

Provides input-only support for an MCUXpresso GPIO pin.

Class-specific behaviors:

The input buffer for the pin must be enabled in the IO Pad Controller (IOPCTL) via the Input Buffer Enable (IBENA) bit.
The input polarity is affected by the Input Invert Enable (IIENA) bit on the corresponding IO Pad Controller (IOPCTL) register.

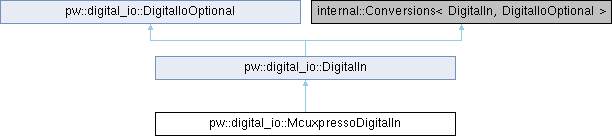

Inheritance diagram for pw::digital_io::McuxpressoDigitalIn:

Public Member Functions
	McuxpressoDigitalIn (GPIO_Type *base, uint32_t port, uint32_t pin)

bool	is_enabled () const
	Returns true if the input is enabled.

Public Member Functions inherited from pw::digital_io::DigitalIn
Result< State >	GetState ()

Result< bool >	IsStateActive ()

Public Member Functions inherited from pw::digital_io::DigitalIoOptional
constexpr bool	provides_input () const

constexpr bool	provides_output () const

constexpr bool	provides_interrupt () const

Result< State >	GetState ()

Status	SetState (State state)

Result< bool >	IsStateActive ()

Status	SetStateActive ()

Status	SetStateInactive ()

Status	SetInterruptHandler (InterruptTrigger trigger, InterruptHandler &&handler)

Status	ClearInterruptHandler ()

Status	EnableInterruptHandler ()

Status	DisableInterruptHandler ()

Status	Enable ()

Status	Disable ()

Private Member Functions
pw::Status	DoEnable (bool enable) override

pw::Result< pw::digital_io::State >	DoGetState () override

The documentation for this class was generated from the following file:
